Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
| Lugar de origem | Guangdong, China |
|---|---|
| Marca | LDSK |
| Número do modelo | LDSKL03 |
| Quantidade de ordem mínima | 1 |
| Preço | $4100 |
| Tempo de entrega | 1 dia de trabalho |
| Termos de pagamento | D/A, D/P, T/T, Western Union, MoneyGram, PayPal |
| Habilidade da fonte | 5000pcs por mês |
Contacte-me para obter amostras grátis e cupões.
Whatsapp:0086 18588475571
Conversamos: 0086 18588475571
Skype: sales10@aixton.com
Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.
xDetalhes do produto
| Banda de frequência de detecção | 300 MHz ~ 6 GHz | Raio de detecção | 3km (ambiente urbano) |
|---|---|---|---|
| Tempo de resposta | 5s | Tempo de resistência | 3 ~ 4H |
| Destaque | Dispositivo de detecção anti -drone de 6000MHz, dispositivo de detecção anti -drone vestível | ||
| Destacar | CRPC+ Technology Handheld Drone Detector,RID Monitoring UAV Detector,Passive Detection Portable Drone Detection Device |
||
Você pode marcar os produtos de que precisa e se comunicar conosco no quadro de mensagens.
Descrição de produto
3KM Detection Handheld Drone Detection & Positioning System 300MHz–6GHz Full-Band Coverage
Product Description
The Handheld Drone Detection and Positioning Equipment (LDSKL03) uses Cognitive Radio Protocol Cracking+ message-level decoding (CRPC+) technology and RID monitoring and identification technologies to detect, accurately identify, locate, and track low-altitude drones. The system is designed with high integration, compact size, and lightweight, primarily used for portable low-altitude security defense.
Cognitive Radio Protocol Cracking Technology (CRPC 2.0) is the fourth generation of drone defense technology. This technology uses an antenna array to monitor the radio environment within the defense area, continuously collecting radio signals 24 hours a day. The collected signals are transmitted to the signal processing unit, where drone signals are precisely demodulated and cracked. The analyzed drone signals are then sent to the data server via the network, where the data server manages the received drone signals uniformly
Applications include:
- Event security and public safety
- Border and perimeter monitoring
- Airport and restricted area protection
- Industrial facility security patrols
Product Specifications
|
Working Principle |
Passive detection, does not emit any electromagnetic signals |
|
Detection Bands |
900MHz, 1.2MHz, 2.4GHz, 5.8GHz, WiFi； |
|
Sensitivity |
≤-100dBm |
|
Detection Distance |
0~3km+ (Different exist due to different environments and drone type) |
|
Response Time |
≤5s |
|
Detection Quantity |
≥10 Drones (Simultaneous) |
|
Number of Drone Trajectories |
≥10 Drones (Simultaneous) |
|
Position Accuracy |
≤3m (Available for the drones can be decoded) |
|
Drone Library (Geo-Locaation) |
DJI OC protocol models, Mavlink protocol, Parrot, TBS CrossFire and other brands |
|
Dynamic Detection Movement Speed |
≥60km/h (Available for the drones can be decoded) |
|
Screen Size |
6.0 Inch |
|
Battery Capacity |
12000mAh |
|
Endurance |
3～4h |
|
External Interface |
Type-C, SMA antenna connector (external screw and internal hole)*2, 3.5mm audio output connector*1, SIM card*1 |
|
Charging Power |
DC9V, 2A |
|
Charging Time |
≤3h(0%-100%) |
|
Power Consumption |
≤15W |
|
Size |
177mm * 89mm * 29.5mm(±2mm) |
|
Weight |
≤580g(±0.05kg,without antenna) ≤46g per antenna |
|
Operation Temperature |
-20℃ to +50℃ |
|
Storage Environment |
15～25℃ RH25～65% |
|
IP Level |
IP54 |

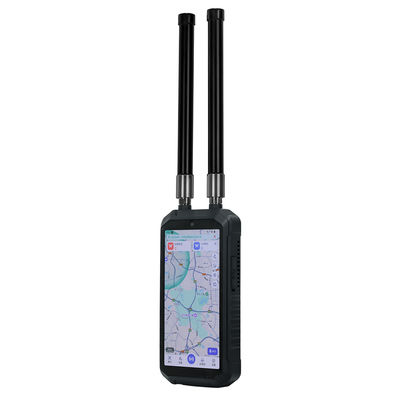

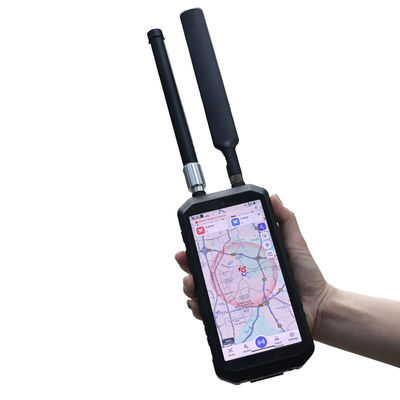

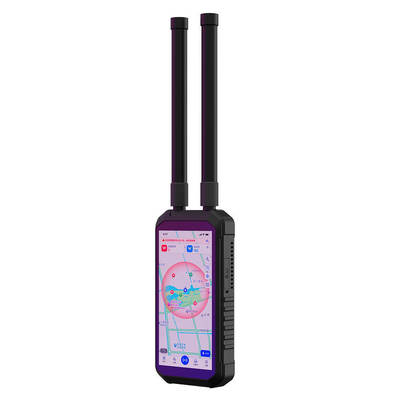

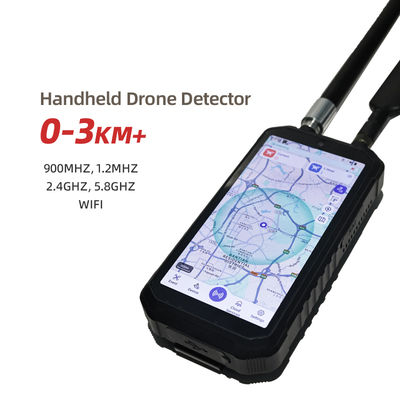

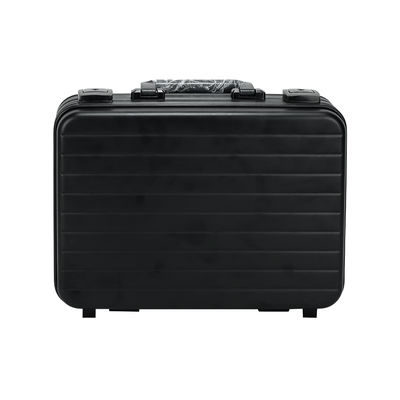

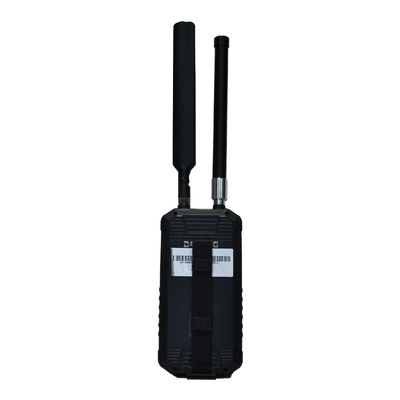

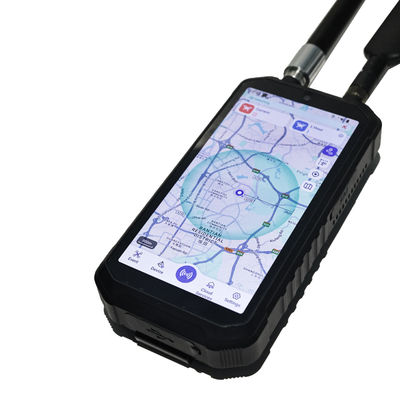

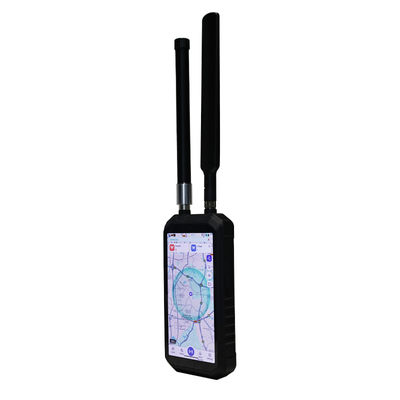

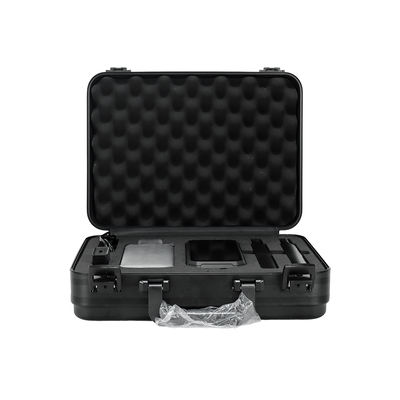

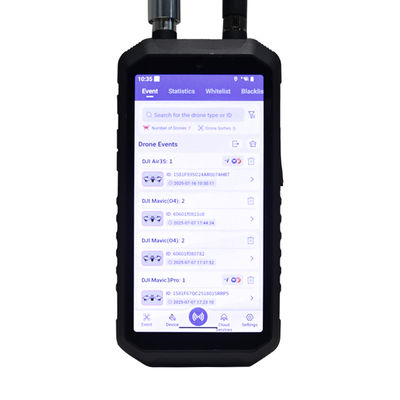

Product Images
